MTL4514D – MTL5514D Switch/Proximity Detector Interface for Harsh Environments

  • 1
  • 2
  • 3

Brand Name : MTL

Model Number : MTL4514

Certification : CE

Place of Origin : England

MOQ : 1pc

Price : negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : on request

Packaging Details : standard carton packing

Number of channels : One

Location of switch : Zone 0, IIC, T6 hazardous area Div.1, Group A, hazardous location

Location of proximity detector : Zone 0, IIC, T4–6 hazardous area, if suitably certified Div.1, Group A, hazardous location

Hazardous–area inputs : Inputs conforming to BS EN60947–5–6:2001 standards for proximity detectors (NAMUR)

Voltage applied to sensor : 7 to 9V dc from 1kΩ ±10%

Safe-area output : two, single pole relays with normally-open contact

Contact Now

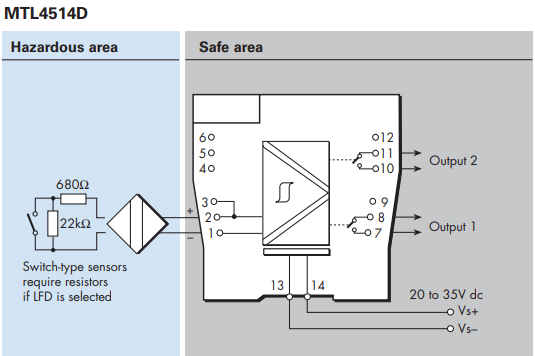

MTL4514D – MTL5514D SWITCH/ PROXIMITY DETECTOR INTERFACE

The MTLx514D enables two safe–area loads to be controlled, through relays, by a proximity detector or switch located in a hazardous area. When selected, open or short circuit conditions in the field wiring are detected by the line fault detect (LFD) facility and indicated on the top of the module. Switches are provided to select phase reversal and to enable the line fault detection.

Relay characteristics

MTL4514D MTL5514D
Response time: 10ms maximum 10ms maximum
Contact rating (Safe Area): 10W, 0.5A, 35V dc 250V ac, 2A, cosØ >0.7, 40V dc, 2A, resistive load
Contact rating (Zone 2): 10W, 0.5A, 35V dc 35V, 2A, 100VA.
